Frame damage on a car means the metal structure that supports the entire vehicle has been bent, cracked, or weakened. It usually happens after a collision, but even a curb hit or rust can affect the front frame or rear supports. Damage like this can impact steering, braking, and crash protection. If not fixed correctly, it may lead to further complications such as poor alignment or suspension failure. Some shops perform improper repairs that only hide the problem. That is why it is important to check for frame damage before buying, driving, or fixing any used car.
Structural Damage vs Frame Damage
Structural car damage affects the vehicle’s structural integrity, while frame damage specifically impacts the parts of a vehicle’s frame that hold the body, suspension, and other components in place.
| Type of Damage | Affected Area | Can It Be Repaired? | Common Repairs | Risk If Ignored |
| Frame Damage | Main rails, crumple zones, crossmembers (parts of a car frame) | Sometimes, with frame straightening | Welding, hydraulic realignment | Poor handling, reduced crash safety |
| Structural Damage | Subframe, unibody, load paths | Yes, if within the manufacturer’s specifications | Reinforcement, realignment | Loss of the vehicle’s structural integrity |
| Cosmetic Body Damage | Bumpers, doors, and body panels | Yes | Panel replacement, repainting | Aesthetic only, no safety impact |
Common Causes of Frame Damage
Frame damage can happen even without a major crash. Outside forces like road hazards or a minor fender bender may be enough to bend critical supports, especially if the frame work on a car was weak to begin with.
- Rear-end collisions at high speeds can crush crumple zones, bending structural rails.
- Off-road driving increases stress on joints and weak spots in the frame.
- Improper lifting or towing can twist the frame, causing hidden misalignment.
- Severe rust in snowbelt regions weakens metal over time, especially in older vehicles.
- Flood exposure softens car frame welds and weakens bolt connections.
- Some buyback vehicles with defects already have hidden frame repairs.
- Damage is more likely when the frame plays a key role in protecting passengers during impact.
Signs Your Car May Have Frame Damage
SCA Auctions found that around 15 percent of vehicles listed for sale show signs of hidden car frame damage that buyers often miss during visual inspection. One common clue is uneven body lines or major dents near structural points. A car with a rebuilt title may look fine on the outside but still have deep internal misalignment that affects how it drives.
Bent car frame symptoms often show up while driving. If the car pulls to one side, feels loose at high speeds, or makes unusual noises when going over speed bumps, something could be wrong underneath. These signs usually come with uneven tire wear, shaking at certain speeds, or visible wear and tear around the suspension. When in doubt, check for gaps, noises, and strange handling.
DIY Frame Assessment in Under 5 Minutes
According to a recent review, 50 percent of vehicles undergoing post-repair inspections showed significant frame damage. It’s a clear sign that a quick home check may save trouble later. To check for yourself, park the car on flat ground and walk around it. Look for uneven gaps in doors, hood, or trunk. Use a flashlight to inspect the wheel wells and engine bay. Focus on the car chassis frame and the surrounding internal car parts. Watch for cracks, crooked welds, or shifted mounts. On a short drive, clunks or rattles may reveal early suspension issues. A fast check now can lead to timely repairs.
Can a Bent Car Frame Be Repaired?
Car frame repair is possible in many cases, but success depends on the severity of the damage and the type of vehicle. If the frame has suffered major damage from a significant impact or years of carrying heavy loads, only a professional collision repair shop with specialized equipment should handle the job.
- Technicians use hydraulic machines to pull the frame back to factory measurements.
- Laser measuring systems help detect alignment issues across the entire structure.
- Damaged sections may be cut out and replaced using welds that meet manufacturer guidelines.
- Suspension and other mechanical components must be realigned after the frame is straightened.
- Shops test drive the car to confirm handling and structural response.
- Some repairs take days or weeks, depending onthe availability of parts.
- If the cost is too high or safety cannot be restored, replacing the vehicle may be safer.

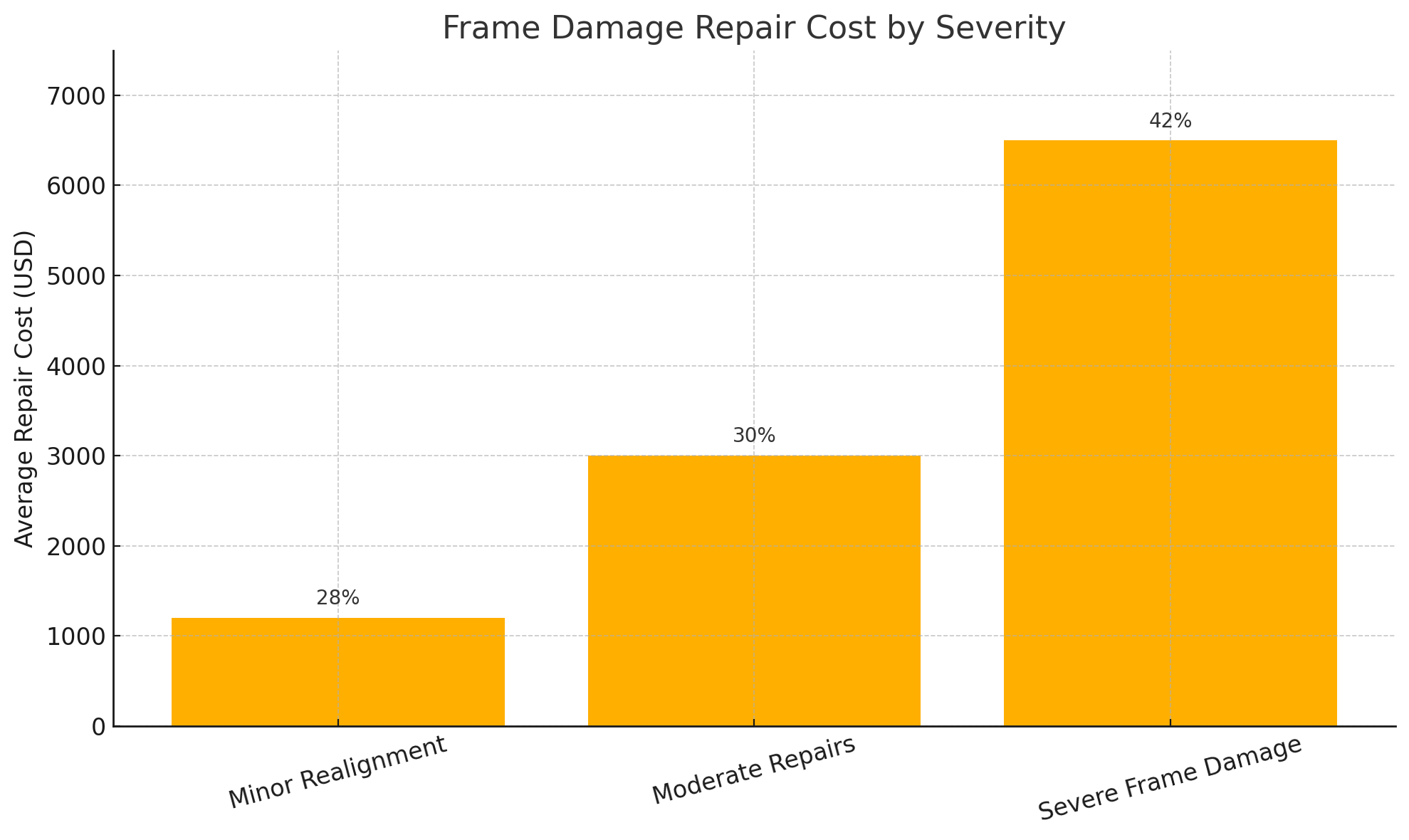

Frame Damage Repair Cost Breakdown
Repair costs vary widely depending on severity and repair method. Simple front-end frame damage that involves minor realignment and welding may stay cost-effective at $600 to $1 500, while moderate repairs with replacement parts and precision alignment climb to $2 000 to $4 000. In severe cases where crumple zones require multi-point pulling or subframe sections need replacement, expenses can reach $6 000 or more, especially on modern cars with complex materials. Always check for telltale signs such as mismatched panel fit or uneven suspension travel early during routine inspections to avoid surprise bills.
Industry data from SCA Auctions reveals that 42 percent of crash-damaged vehicles show frame issues requiring mid to high-level repairs after inspection, highlighting that many buyers underestimate underlying damage costs.
Frame Repair Shop Checklist
Choosing the right shop for repairing car frame damage can reduce follow-up costs by over 40 percent, especially when minor frame damage or critical components go unchecked during the first visit.
| Checklist Item | Why It Matters | What to Ask or Look For |
| Certified in unibody frames | Over 65% of modern vehicles use unibody frames that need expert handling | Is the shop I-CAR Gold Class or OEM-certified? |
| Suspension system check | 38% of post-repair handling issues come from suspension system misalignment | Will you inspect all mounts and steering links? |
| VIN decoder report used | 46% of shops miss prior frame repairs without a VIN decoder scan | Can you verify history using a VIN decoder? |
| Underside inspection tools | Damage to the vehicle’s underside often goes unnoticed but causes costly repairs | Do you lift and inspect the full underside? |
| Warranty on critical repairs | Shops offering written warranties reduce customer disputes by 30% | Do you provide a warranty for all structural repairs? |
When Insurers Will Declare Your Car a Total Loss
A car is usually declared a totaled car when the cost to fix it exceeds a set percentage of its market value, often between 70 and 80 percent, depending on the state and the insurance company. If a damaged car frame affects safety features, weight distribution, or alignment, repairs may not be justified. This is especially true for older vehicles or trucks with a ladder frame, where bending can cause further damage to mounts and body supports. After any serious impact, a professional inspection is the only way to confirm if the car, checked by the insurer, is repairable or unsafe. If frame damage is reported, many states require that the title be changed to “salvage” or “rebuilt.” Insurance adjusters rely on photos, repair quotes, and diagnostic scans to assess the full extent. A totaled designation often protects both driver and insurer from future risks tied to unstable repairs.
SCA Auctions Pro Tip: Always compare pre-loss value to repair costs before accepting a settlement. Bring your own body shop estimate if you suspect the insurer undervalued the damage.
The Risk of Hidden Frame Damage When Buying a Used Car
Buying a car with frame damage is more common than most think, especially when sellers cover flaws with new paint or replacement panels. Even if there are no visible signs, it’s just a matter of time before hidden damage affects the vehicle’s ability to drive straight or absorb impact.
- The vehicle’s frame may fail in a second collision, even at lower speeds.
- Crumple zones may no longer absorb energy as designed, raising injury risk.
- Rust formation inside the frame can spread and weaken structural joints.
- Misalignment from previous damage can wear tires and brakes prematurely.
- Damage near the fuel tank area may reduce fuel efficiency or create leaks.
- Electronics and sensors may behave unpredictably if mounting points are shifted.
- Insurance payouts may be lower if prior frame damage was undisclosed.
- Hidden frame flaws can lower resale value and delay future trade-ins.

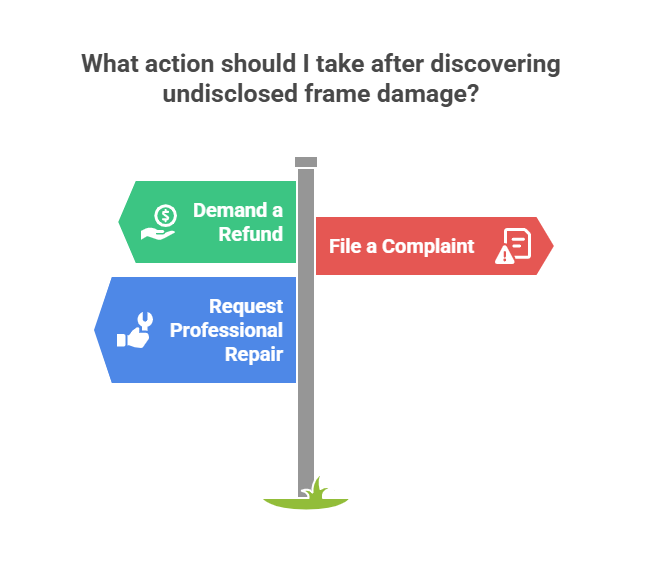

What to Do If a Dealer Sold You a Car With Undisclosed Frame Damage
If a dealer sold you a vehicle with undisclosed car frame damage, act quickly. Start by getting a full inspection that documents frame misalignment, poor panel fit, or issues like difficulty closing doors. Save all paperwork and request a written statement from the shop to have frame damage reported. Dealers sometimes label these vehicles as cars to restore, hoping buyers won’t notice hidden flaws. You can demand a refund, file a complaint, or request professional repair at the seller’s expense. Legal options vary by state.
Summary
If the frame is damaged, the car’s safety, handling, and resale value are at serious risk. The two primary types of damage, structural and cosmetic, must be clearly distinguished before making repair or purchase decisions. Car frame damage weakens the overall strength of the vehicle and may compromise passenger safety in any future crash. A full inspection is essential before any used car purchase. Always verify records, inspect the frame, and never assume repairs were done properly without proof. Your car’s safety depends on what lies beneath the surface.
FAQ
Will a Car Pass Inspection with Frame Damage?
That depends on your state and the extent of the damage. In many states, cosmetic or previously repaired damage may not prevent a vehicle from passing inspection. However, if the car frame damage compromises structural integrity or safety systems like airbags or crumple zones, it may fail.
Is It Illegal to Sell a Car with a Cracked Frame?
Selling a car with a cracked car frame is not automatically illegal, but failing to disclose it may be. In most states, dealers are required to inform buyers of known structural car damage.
What Happens If the Frame Breaks While Driving?
If the car frame breaks while driving, the car can become unstable or even uncontrollable. It may pull hard to one side, drop in height, or cause suspension components to detach.
Will Frame Damage Void My Factory Warranty?
Yes, in most cases. Car frame damage caused by collision, rust, or improper modifications typically voids factory warranties on related systems, especially if repairs were not completed at an authorized service center.
What’s the Difference Between a Bent Frame and a Bent Subframe?
A bent frame refers to damage in the main structure of the vehicle, either the full chassis or the unibody. A bent subframe affects a secondary support structure, usually where suspension or engine parts are mounted. Subframe repairs are sometimes cheaper but can still affect alignment and long-term safety.
